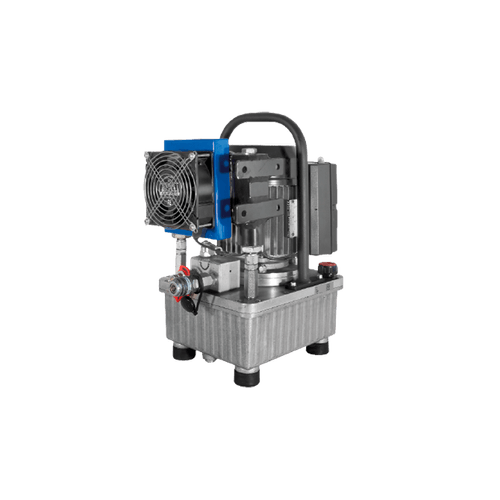

Hydraulic Power Units (Electric)
Our Electric Motor Hydraulic Power Units, encompassing models CB700 L4, CB700 L4 with 2 Solenoid valves, CB700 L7, VDS700 380 bar, VDS700 G28 with Cooler, and VDS700 L3 700 bar, provide precise and high-performance power from 1.4 kW to 9.2 kW. These units offer oil flow rates from 1.2 l/min to 7.5 l/min and are designed for optimal performance with features like integrated solenoid valves, automatic filter cleaning, and adjustable volume flow control. The robust chassis with large wheels ensures easy transport and stability. Suitable for small-medium hydraulic tools, these units excel in construction, cutting, and other applications requiring precise control and reliability. Available in various voltage versions, they are versatile and adaptable to a wide range of tasks.
- Available in 230V and 400V versions
- Integrated solenoid valves for precise control
- Permanent Clean automatic filter cleaning
- Antistatic hose to prevent electrostatic charging
- Adjustable volume flow control
- Robust chassis with large wheels and swivel castors
- Float valve for liquid level monitoring
- Diffuser to avoid stirring up exhaust air
- Adapter plate for attaching tool cases
- Suitable for small-medium hydraulic tools with electrical control
Power Input: 1.4 kW to 9.2 kW
Oil Flow: 1.2 l/min to 7.5 l/min
Tank Volume Range: 2.3 l to 23 l
Working Pressure: 38 MPa (380 bar) to 70 MPa (700 bar)
Dimensions: 357 x 229 x 351 mm to 700 x 570 x 714 mm
Weight Range: 16.7 kg to 232 kg
